2014 Caterpillar 259D
Skid Steers > Track Skid Steers
2014 Caterpillar 259D
Skid Steers > Track Skid SteersUSD $32,500
Buy It NowSeller Info
Ridgeline Equipment Sales
Brian DeVore
(301) 707-8704
Location: Frostburg, MD 21532
Listed On: 3/24/2025
Equipment Details
| Year | 2014 |
| Manufacturer | Caterpillar |
| Model | 259D |

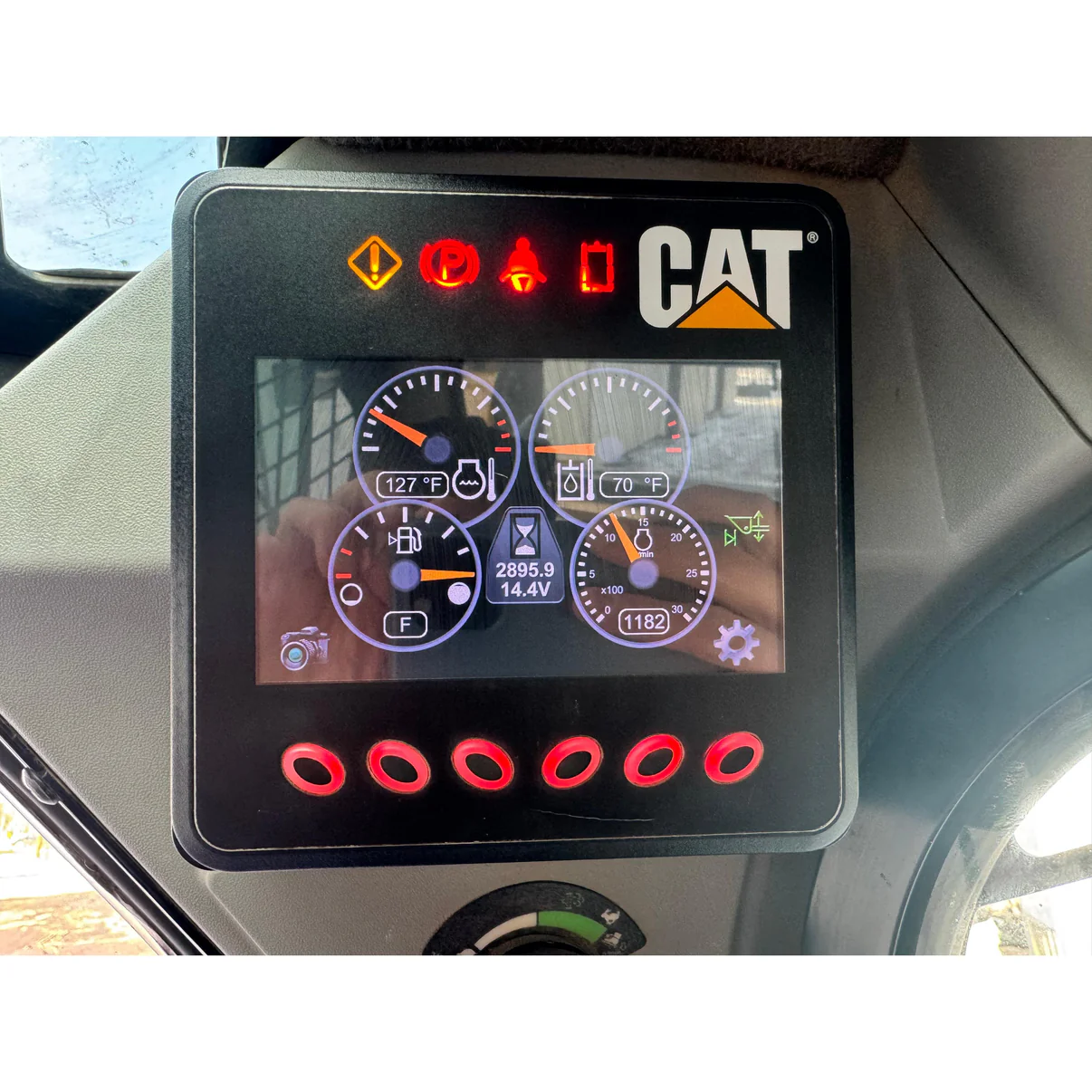

| Hours | 2890 |
| Condition | used |

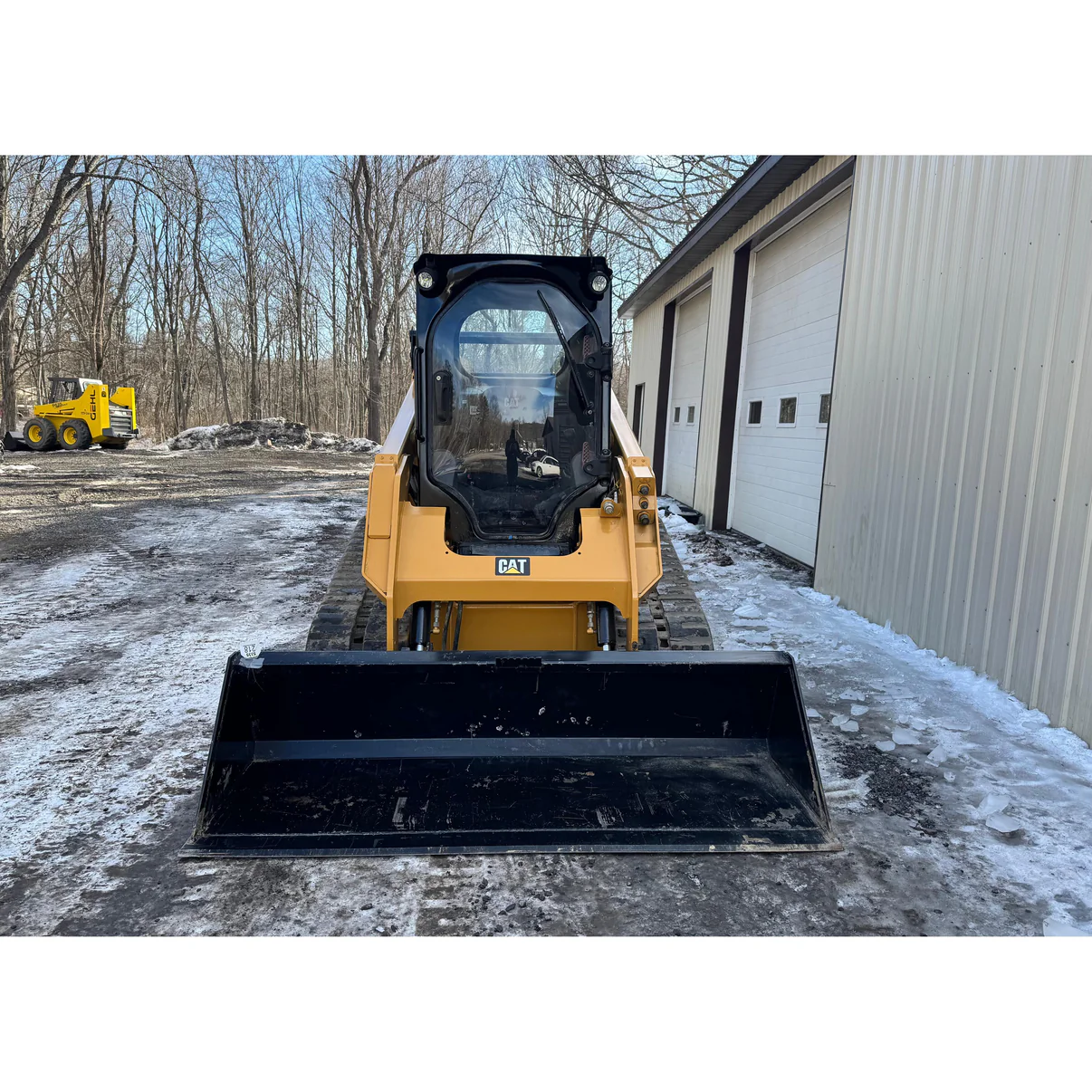

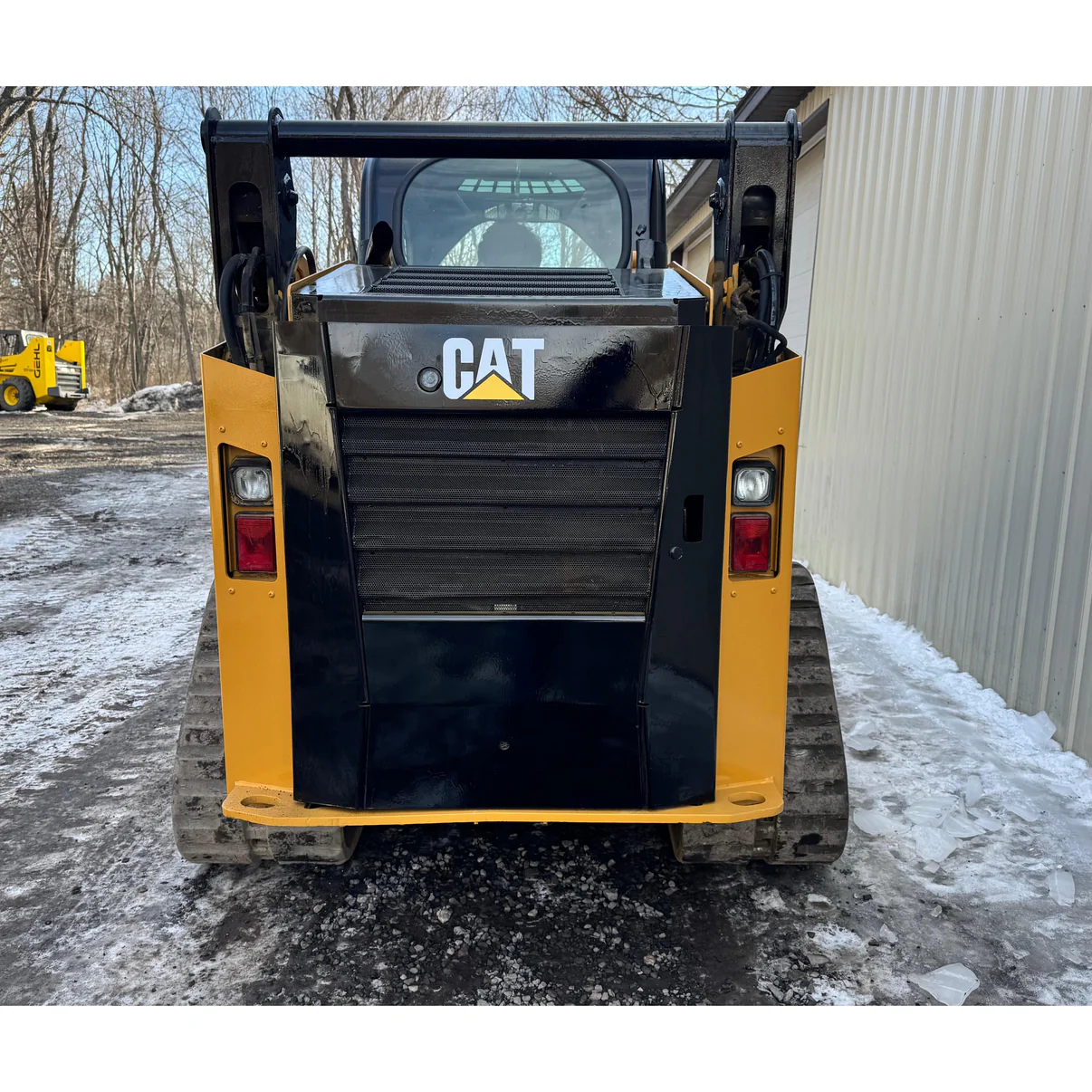

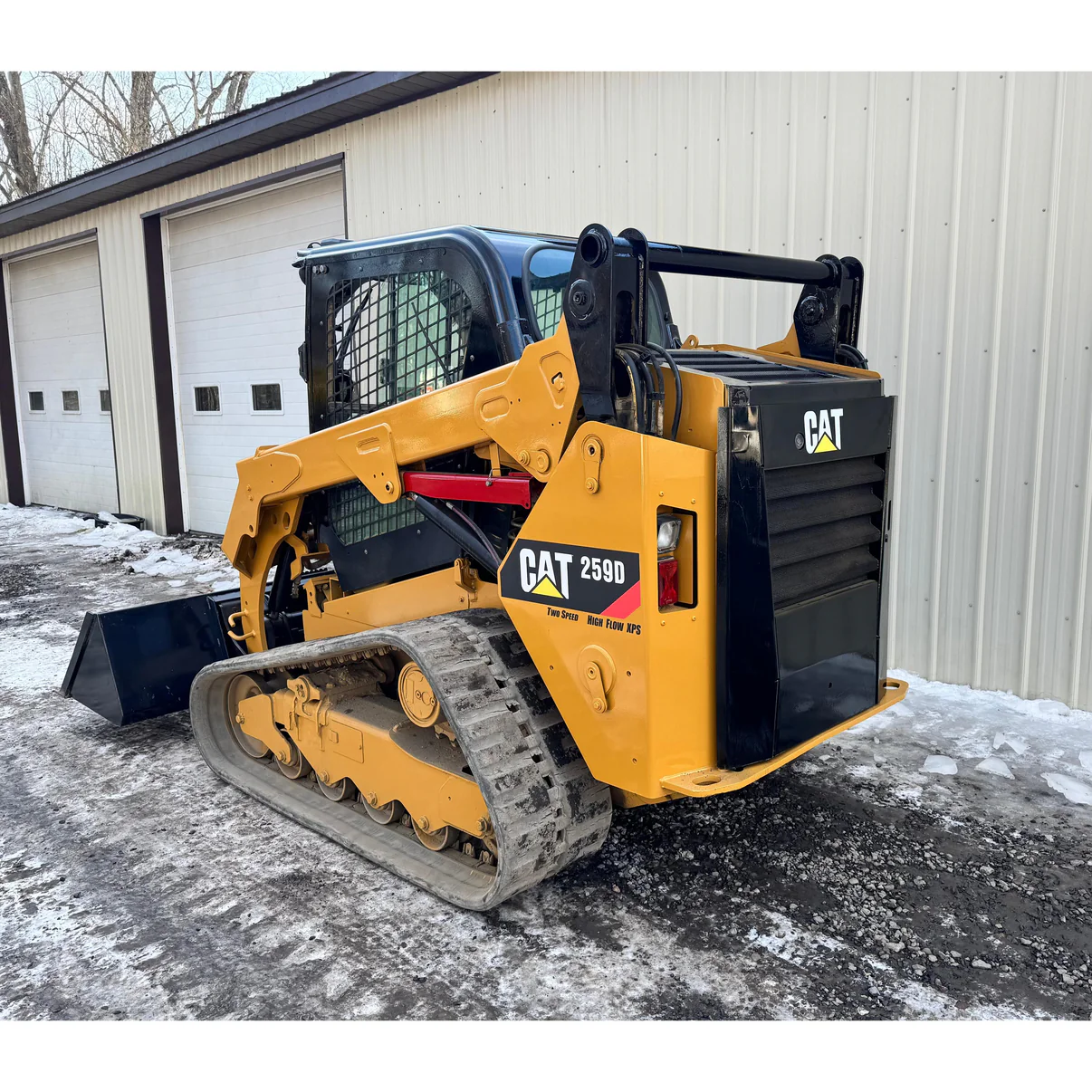

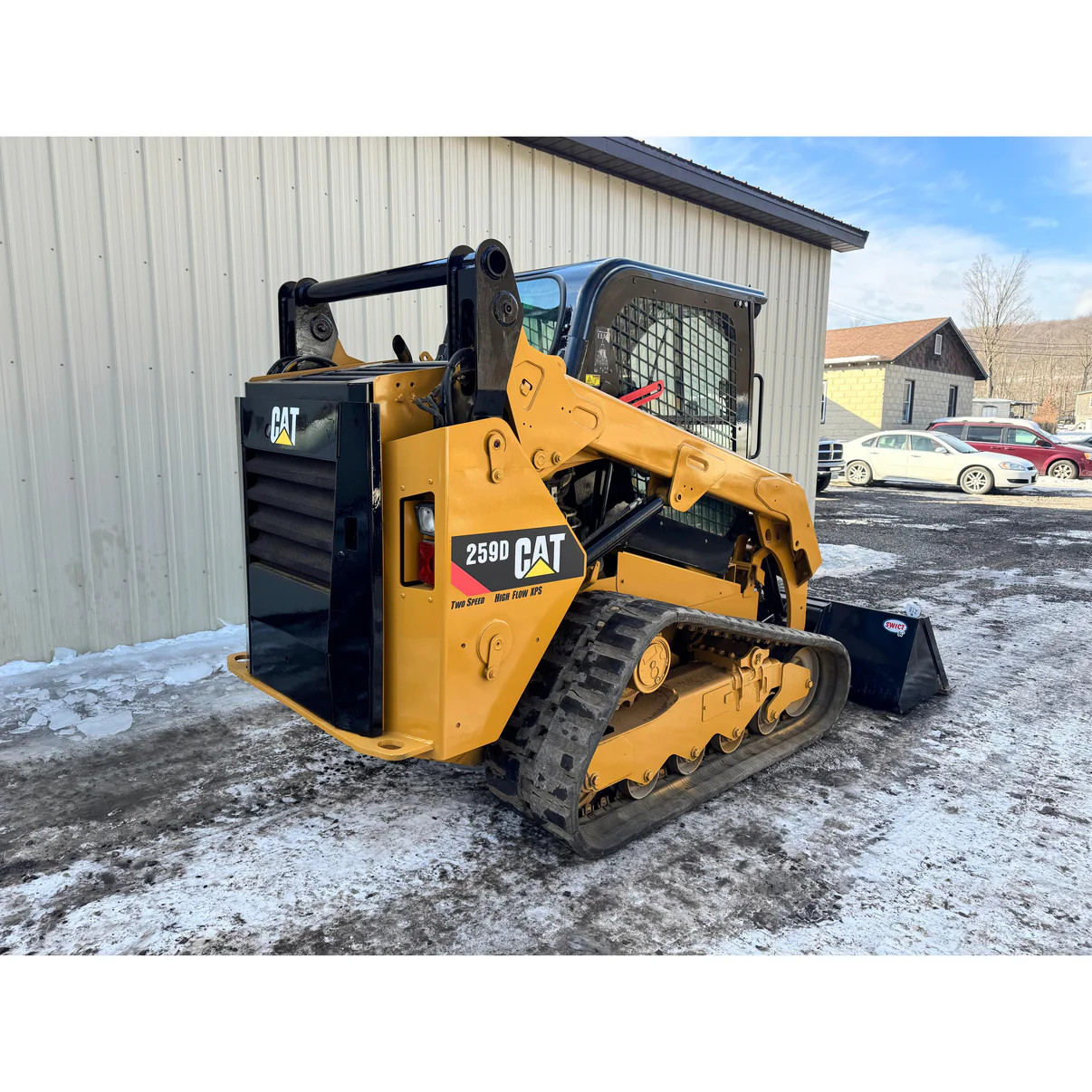

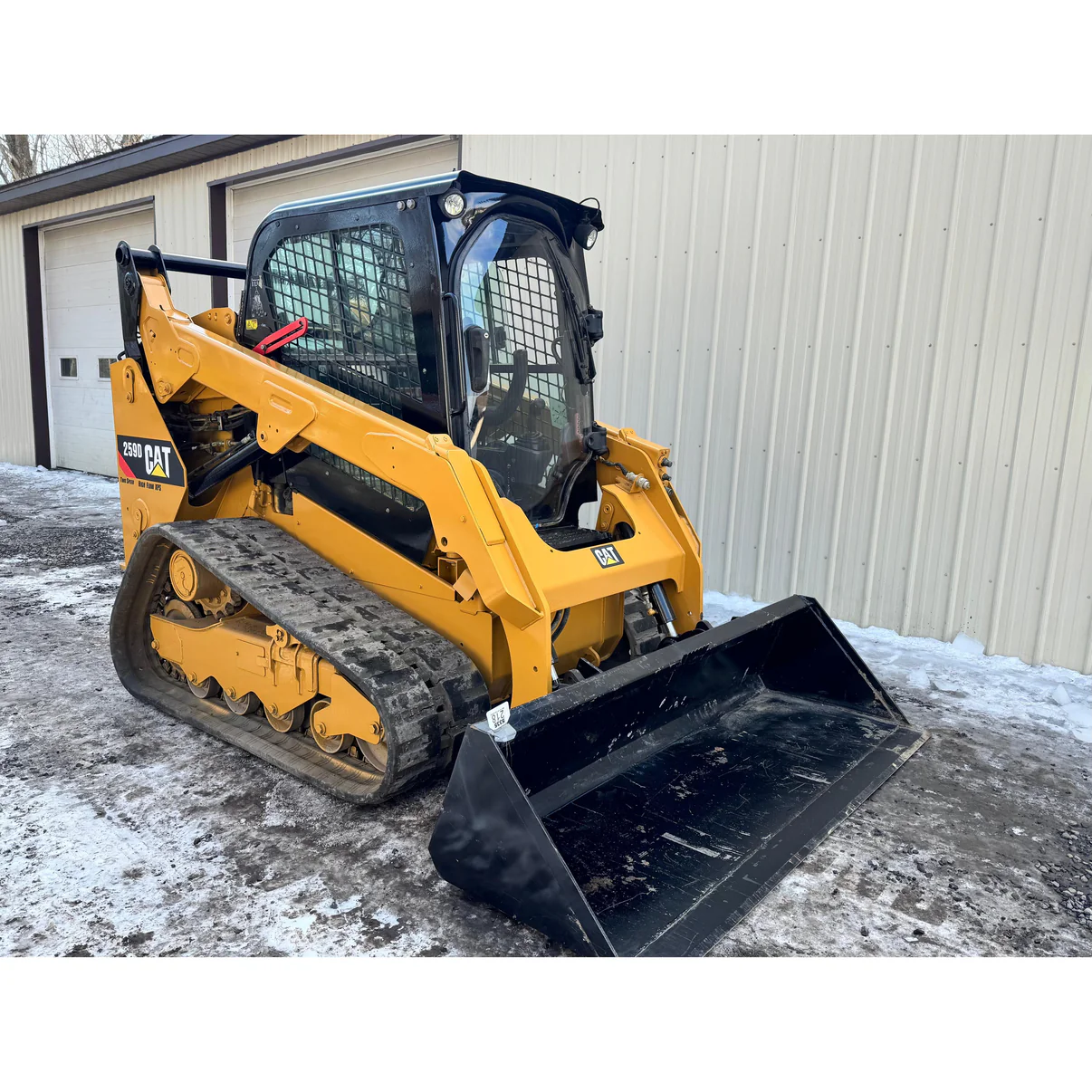

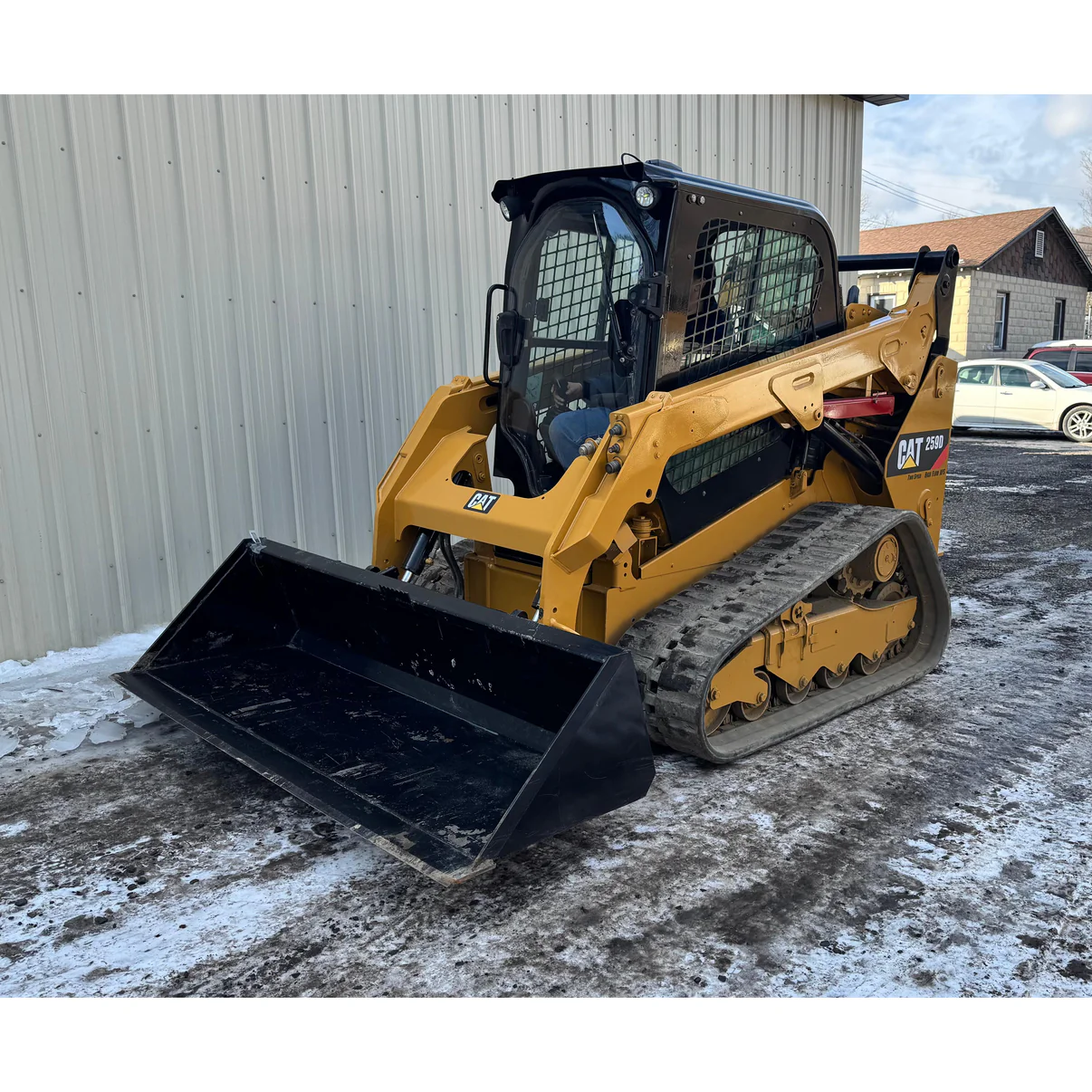

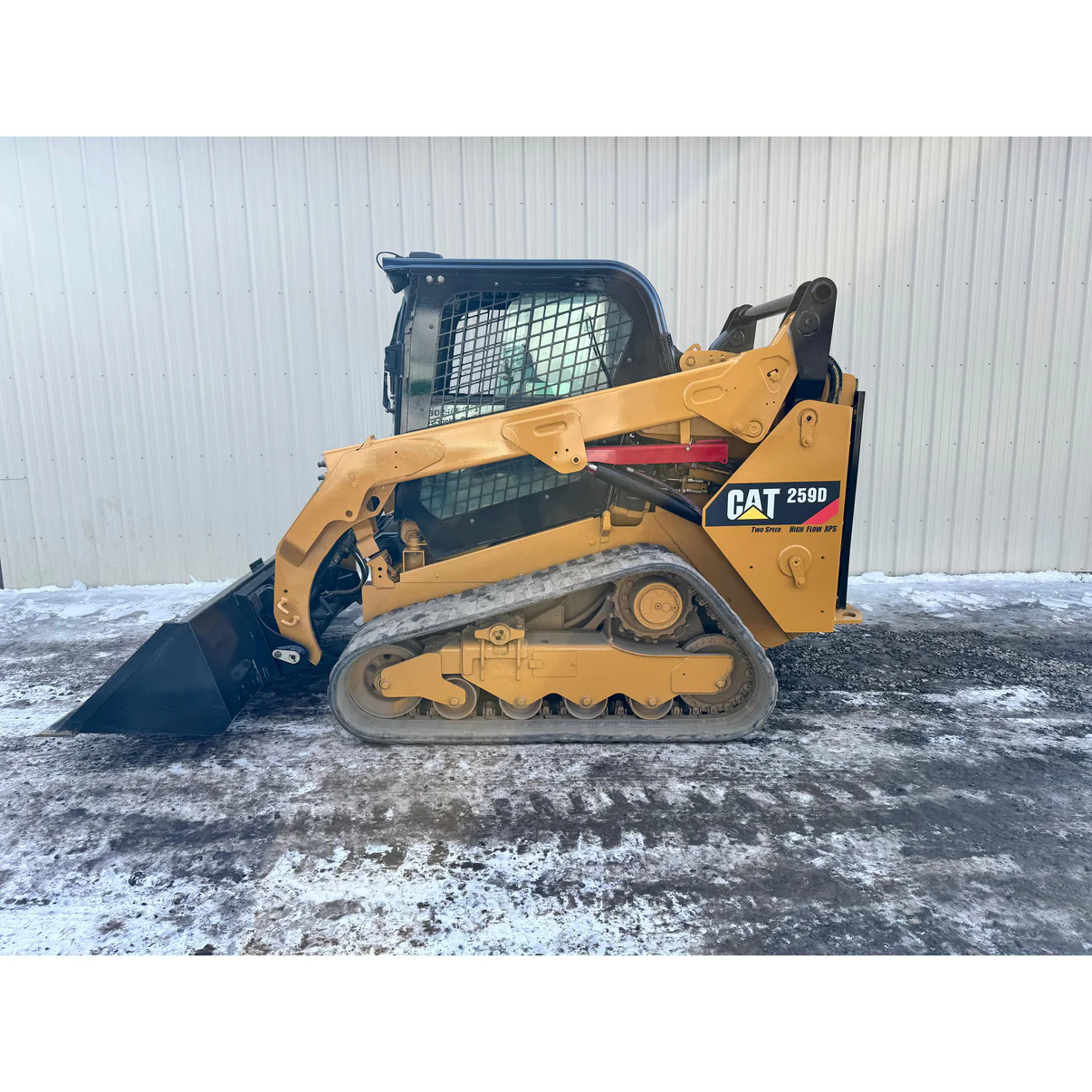

| Description | This 2014 Cat 259D compact track loader is in excellent condition and ready to tackle your toughest jobs. Freshly painted with new decals, it looks as good as it performs, and it’s loaded with premium upgrades to maximize comfort, efficiency, and productivity. Whether you’re grading, excavating, or handling materials, this machine delivers reliable power and versatility to get the job done. Don’t miss your chance to own a job-ready workhorse—call or text today to schedule a time to check it out! |
Specifications
| year | 2014 |
| model | Caterpillar 259D |
| cab_FOPS | ISO 3449:2005 Level I |
| cab_ROPS | ISO 3471:2008 |
| engine_bore | 3.7 in |

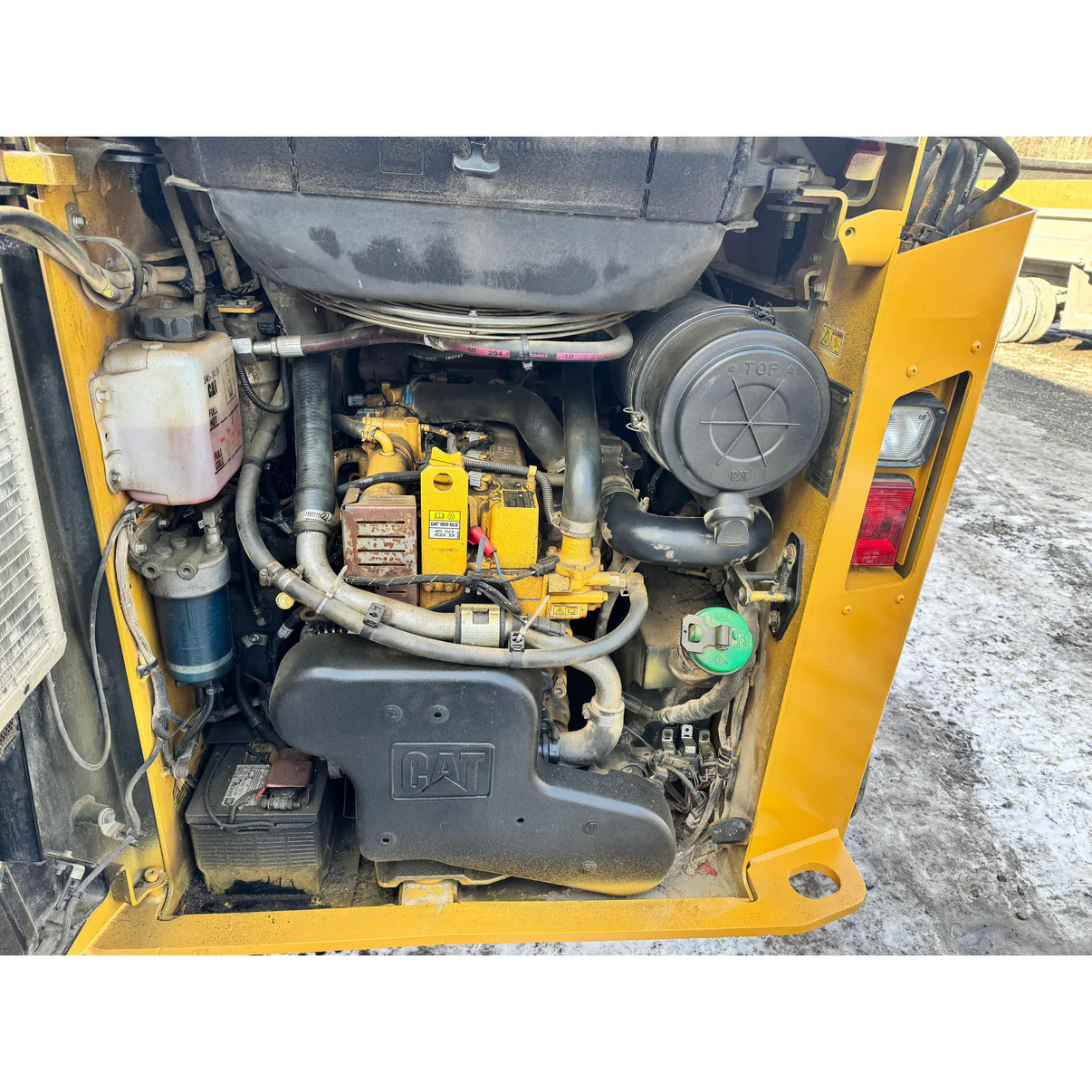

| engine_model | Cat C3.3B DIT (turbo) |
| tipping_load | 5,800 lb |
| engine_stroke | 4.7 in |
| departure_angle | 35° |
| engine_net_power | 73.2 hp |
| ground_clearance | 8.9 in |
| cab_FOPS_Level_II | ISO 3449:2005 Level II |
| engine_gross_power | 74.3 hp |
| engine_peak_torque | 195 lb·ft @ 1,500 rpm |
| fuel_tank_capacity | 27.7 gal |
| maximum_dump_angle | 52° |
| engine_displacement | 203 in³ |
| height_to_top_of_cab | 83.1 in |
| overall_track_length | 78.7 in |
| length_without_bucket | 108.9 in |
| noise_level_inside_cab | 83 dB(A) |
| track_on_ground_length | 59 in |
| travel_speed_one_speed | 5.9 mph |
| travel_speed_two_speed | 8.5 mph |
| cooling_system_capacity | 3.7 gal |
| hydraulic_tank_capacity | 10.3 gal |
| noise_level_outside_cab | 103 dB(A) |
| engine_crankcase_capacity | 3 gal |
| high_flow_hydraulic_power | 58 hp |
| hydraulic_system_capacity | 13.2 gal |
| width_with_12.6_in_tracks | 66 in |
| width_with_15.7_in_tracks | 69 in |
| breakout_force_tilt_cylinder | 5,035 lb |
| length_with_bucket_on_ground | 137.3 in |
| standard_flow_hydraulic_power | 39 hp |
| air_conditioning_CO2_equivalent | 1.158 metric tonnes |
| high_flow_loader_hydraulic_flow | 30 gal/min |
| air_conditioning_refrigerant_type | R134a refrigerant |
| bucket_pin_height_at_maximum_lift | 121 in |
| bucket_pin_height_at_carry_position | 7.8 in |
| ground_pressure_with_12.6_in_tracks | 6 psi |
| ground_pressure_with_15.7_in_tracks | 4.8 psi |
| high_flow_loader_hydraulic_pressure | 3,335 psi |
| standard_flow_loader_hydraulic_flow | 20 gal/min |
| operating_weight_with_12.6_in_tracks | 8,846 lb |
| operating_weight_with_15.7_in_tracks | 8,945 lb |
| air_conditioning_refrigerant_quantity | 0.81 kg |
| ground_contact_area_with_12.6_in_tracks | 1,483 in² |
| ground_contact_area_with_15.7_in_tracks | 1,848 in² |
| standard_flow_loader_hydraulic_pressure | 3,335 psi |
| rated_operating_capacity_at_35_percent_tipping_load | 2,030 lb |
| rated_operating_capacity_at_50_percent_tipping_load | 2,900 lb |
